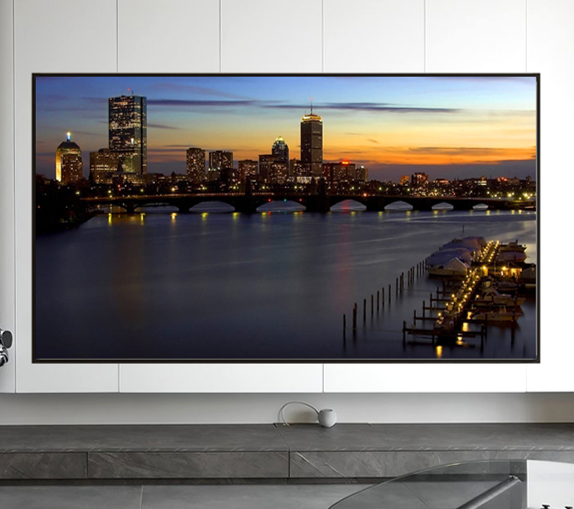

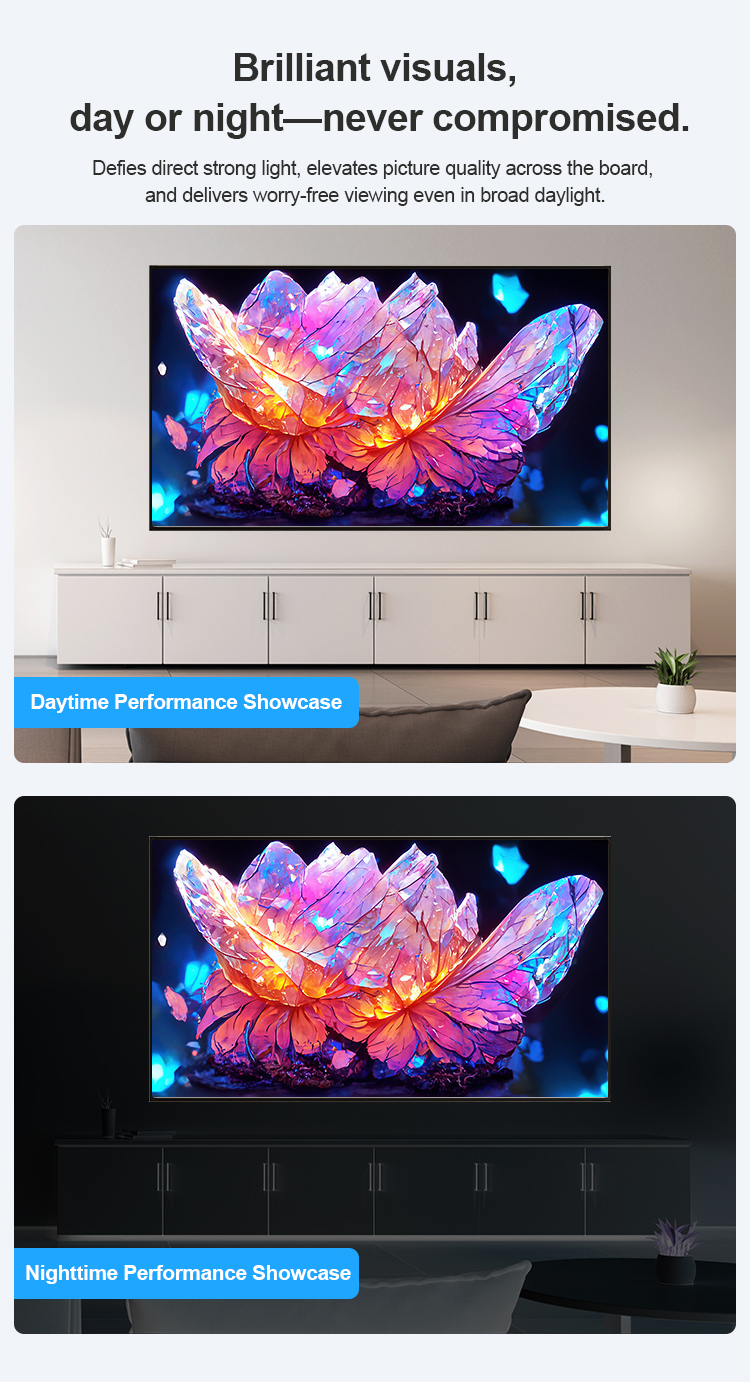

With high brightness gain and excellent color reproduction, the product captures every subtle color in daylight, immersing you in a realistic viewing experience. The design of the anti-glare frame screen is not merely a cold, technological beauty, but rather an artistic masterpiece that harmonizes seamlessly with your home decor.

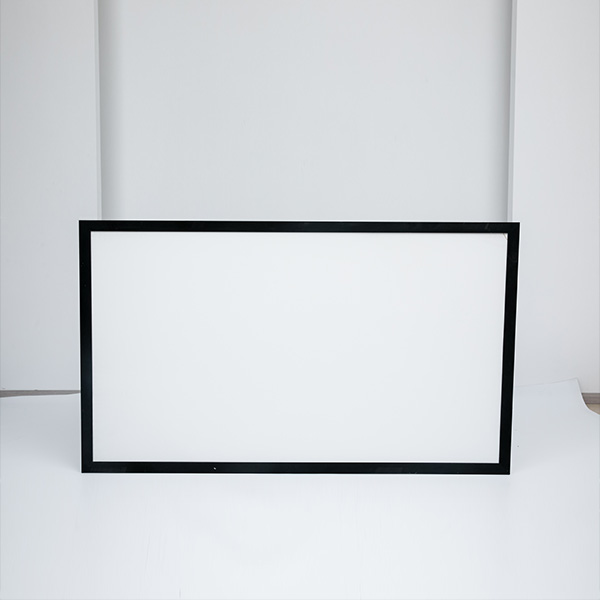

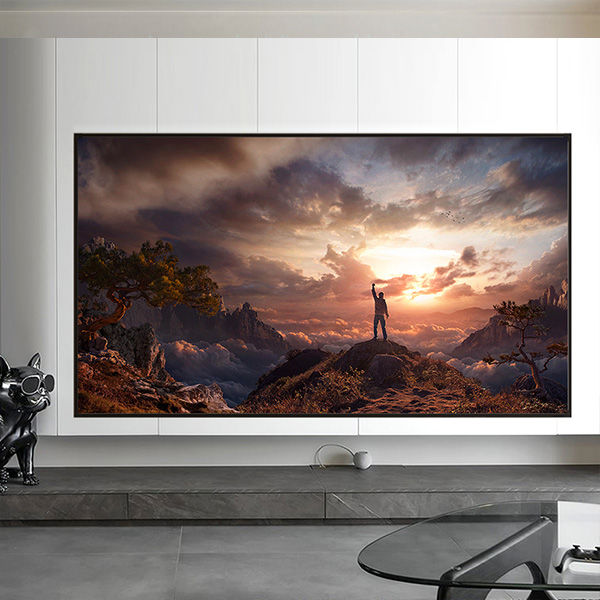

4K high-definition narrow-edge nano frame screen
* With a 99% screen-to-body ratio, it provides an immersive and immersive viewing experience;
* Utilizing the principle of diffuse reflection imaging, the light undergoes secondary refraction before entering the human eye, making it more suitable for children to watch.

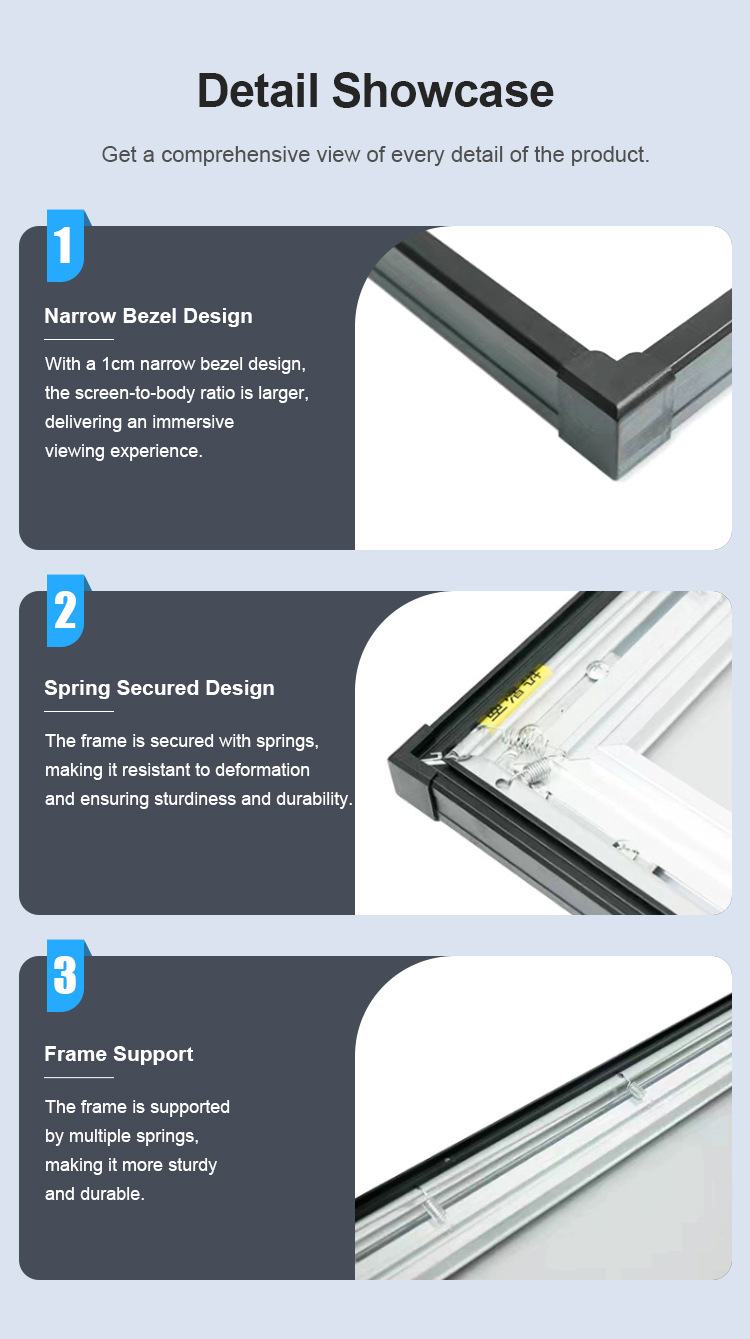

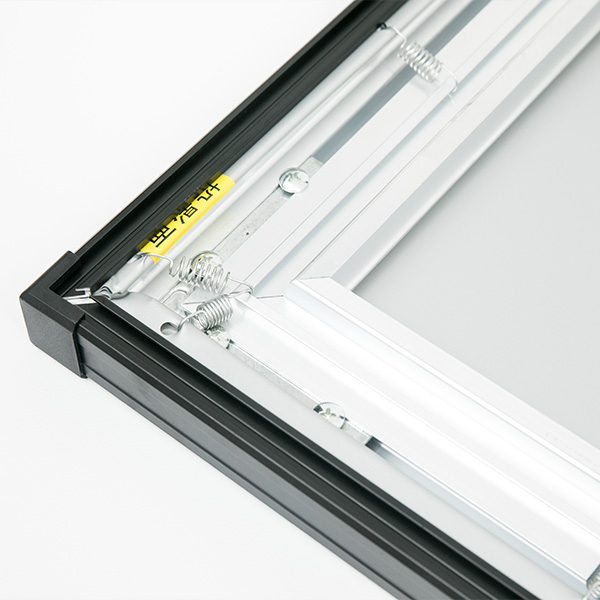

Ultra-narrow frame
1cm ultra-narrow frame design, immersive full-screen viewing
High-definition quality
Each frame is faithfully reproduced, with a clear and delicate image

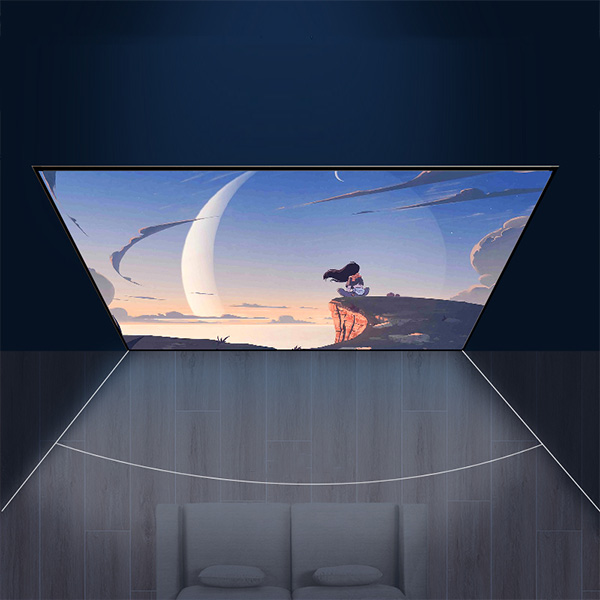

Ultra-wide angle of view
With a 178° ultra-wide viewing angle, you can see clearly from anywhere you sit
| 1cmNarrow border size table | |||
Inch | Projection size | outer dimensions | Cutting size |
| 60”4:3 | 122*91 | 124*93 | 131*100 |
| 60”16:9 | 132*75 | 134*77 | 141*84 |
| 60”16:10 | 129*86 | 131*88 | 138*95 |
| 72”4:3 | 146*110 | 148*112 | 155*119 |
| 72”16:9 | 159*89 | 161*91 | 168*98 |
| 72”16:10 | 155*97 | 157*99 | 164*106 |
| 84”4:3 | 170*128 | 172*130 | 179*137 |
| 84”16:9 | 186*104 | 188*106 | 195*113 |
| 84”16:10 | 180*113 | 182*115 | 189*122 |
| 92”4:3 | 187*140 | 189*142 | 196*149 |
| 92”16:9 | 203*114 | 205*116 | 212*123 |
| 92”16:10 | 198*124 | 200*126 | 207*133 |
| 96”4:3 | 195*146 | 197*148 | 204*155 |
| 96”16:9 | 212*119 | 214*121 | 221*128 |
| 96”16:10 | 206*129 | 208*131 | 215*138 |
| 100”4:3 | 203*152 | 205*154 | 212*161 |
| 100”16:9 | 221*124 | 223*126 | 230*133 |
| 100”16:10 | 215*134 | 217*136 | 224*143 |
| 106”4:3 | 215*161 | 217*163 | 224*170 |
| 106”16:9 | 234*132 | 236*134 | 243*141 |
| 106”16:10 | 228*142 | 230*144 | 237*151 |
| 120”4:3 | 244*183 | 246*185 | 253*192 |
| 120”16:9 | 265*150 | 267*152 | 274*159 |
| 120”16:10 | 258*161 | 260*163 | 267*170 |
| 133”4:3 | 270*202 | 272*204 | 279*211 |
| 133”16:9 | 294*165 | 296*167 | 303*174 |
| 133”16:10 | 286*179 | 288*181 | 295*188 |
| 150”4:3 | 304*228 | 306*230 | 313*237 |
| 150”16:9 | 331*186 | 333*188 | 340*195 |
| 150”16:10 | 322*201 | 324*203 | 331*210 |
| 180”4:3 | 365*274 | 367*276 | 374*283 |
| 180”16:9 | 398*224 | 400*226 | 407*233 |
| 180”16:10 | 387*242 | 389*244 | 396*251 |
| 200”4:3 | 400*300 | 402*302 | 409*309 |
| 200”16:9 | 440*249 | 442*251 | 449*258 |
| 200”16:10 | 430*268 | 432*270 | 439*277 |
| XS0058Narrow border size table | |||||
| Inch | Projection size | outer dimensions | Cutting size | Weight | Package dimensions |
| 60”16:9 | 132*75 | 134*77 | 141*84 | 5 | 144*17*12 |
| 72”16:9 | 159*89 | 161*91 | 168*98 | 6 | 171*17*12 |
| 84”16:9 | 186*104 | 188*106 | 195*113 | 7 | 198*17*12 |
| 92”16:9 | 203*114 | 205*116 | 212*123 | 7.5 | 215*17*12 |
| 96”16:9 | 212*119 | 214*121 | 221*128 | 8 | 224*17*12 |
| 100”16:9 | 221*124 | 223*126 | 230*133 | 8 | 233*17*12 |
| 106”16:9 | 234*132 | 236*134 | 243*141 | 9 | 246*17*12 |
| 120”16:9 | 265*150 | 267*152 | 274*159 | 10 | 277*17*12 |
| 133”16:9 | 294*165 | 296*167 | 303*174 | 16 | 306*17*12 |
| 150”16:9 | 331*186 | 333*188 | 340*195 | 21 | 243*17*12 |
| 180”16:9 | 398*224 | 400*226 | 407*233 | 23 | 410*17*12 |
| 200”16:9 | 440*249 | 442*251 | 449*258 | 25 | 452*17*12 |
| SG0059Narrow border size table | ||||
| Inch | Projection size | outer dimensions | Weight | Package dimensions |
| 60”16:9 | 132*75 | 134*77 | 5 | 144*17*12 |
| 72”16:9 | 159*89 | 161*91 | 5.5 | 170*17*12 |
| 80”16:9 | 177*99 | 179*101 | 7.5 | 189*17*12 |
| 84”16:9 | 186*104 | 188*106 | 6.5 | 198*17*12 |
| 90”16:9 | 199*112 | 201*114 | 10 | 211*17*12 |
| 92”16:9 | 203*114 | 205*116 | 10.5 | 215*17*12 |
| 100”16:9 | 221*124 | 223*126 | 11.5 | 233*17*12 |
| 110”16:9 | 243*137 | 245*139 | 12 | 255*17*12 |
| 120”16:9 | 265*150 | 267*152 | 14 | 277*17*12 |
| 133”16:9 | 294*165 | 296*167 | 15 | 306*17*12 |
| 5cmPicture Frame Screen Size Table | |||
| Inch | Projection size | outer dimensions | Cutting size |
| 60”4:3 | 122*91 | 132*101 | 130*99 |
| 60”16:9 | 132*75 | 142*85 | 140*83 |
| 60”16:10 | 129*86 | 139*96 | 137*94 |
| 72”4:3 | 146*110 | 156*120 | 154*118 |
| 72”16:9 | 159*89 | 169*99 | 167*97 |
| 72”16:10 | 155*97 | 165*107 | 163*105 |
| 84”4:3 | 170*128 | 180*138 | 178*136 |
| 84”16:9 | 186*104 | 196*114 | 194*112 |
| 84”16:10 | 180*113 | 190*123 | 188*121 |
| 92”4:3 | 187*140 | 197*150 | 195*148 |
| 92”16:9 | 203*114 | 213*124 | 211*122 |
| 92”16:10 | 198*124 | 208*134 | 206*132 |
| 96”4:3 | 195*146 | 205*156 | 203*154 |
| 96”16:9 | 212*119 | 222*129 | 210*127 |
| 96”16:10 | 206*129 | 216*139 | 214*137 |
| 100”4:3 | 203*152 | 213*162 | 211*160 |
| 100”16:9 | 221*124 | 231*134 | 229*132 |
| 100”16:10 | 215*134 | 225*144 | 223*142 |
| 106”4:3 | 215*161 | 225*171 | 223*169 |
| 106”16:9 | 234*132 | 244*142 | 242*140 |
| 106”16:10 | 228*142 | 238*152 | 236*150 |
| 120”4:3 | 244*183 | 254*193 | 252*191 |
| 120”16:9 | 265*150 | 275*159 | 273*157 |
| 120”16:10 | 258*161 | 168*171 | 166*169 |
| 133”4:3 | 270*202 | 280*212 | 278*210 |
| 133”16:9 | 294*165 | 304*175 | 302*173 |
| 133”16:10 | 286*179 | 296*189 | 294*187 |
| 150”4:3 | 304*228 | 314*238 | 312*236 |
| 150”16:9 | 331*186 | 341*196 | 339*194 |
| 150”16:10 | 322*201 | 332*211 | 330*209 |
| 180”4:3 | 365*274 | 375*284 | 373*282 |
| 180”16:9 | 398*224 | 408*234 | 406*232 |
| 180”16:10 | 387*242 | 297*252 | 295*250 |
| 200”4:3 | 400*300 | 410*210 | 408*208 |
| 200”16:9 | 440*249 | 450*259 | 448*257 |
| 200”16:10 | 430*268 | 440*278 | 438*276 |
| 6cmPicture Frame Screen Size Table | |||
| Inch | Projection size | Outer dimensions | Cutting size |
| 60”4:3 | 122*91 | 134*103 | 131*100 |
| 60”16:9 | 132*75 | 144*87 | 141*84 |
| 60”16:10 | 129*86 | 141*98 | 138*95 |
| 72”4:3 | 146*110 | 158*122 | 155*19 |
| 72”16:9 | 159*89 | 171*101 | 168*98 |
| 72”16:10 | 155*97 | 167*109 | 164*106 |
| 84”4:3 | 170*128 | 182*140 | 179*137 |
| 84”16:9 | 186*104 | 198*116 | 195*113 |
| 84”16:10 | 180*113 | 192*125 | 189*122 |
| 92”4:3 | 187*140 | 199*152 | 196*149 |
| 92”16:9 | 203*114 | 215*126 | 212*123 |
| 92”16:10 | 198*124 | 210*136 | 207*133 |
| 96”4:3 | 195*146 | 207*158 | 204*155 |
| 96”16:9 | 212*119 | 224*131 | 221*128 |
| 96”16:10 | 206*129 | 218*141 | 215*138 |
| 100”4:3 | 203*152 | 215*164 | 212*161 |
| 100”16:9 | 221*124 | 233*136 | 230*133 |
| 100”16:10 | 215*134 | 227*146 | 224*143 |
| 106”4:3 | 215*161 | 227*173 | 224*170 |
| 106”16:9 | 234*132 | 246*144 | 243*141 |
| 106”16:10 | 228*142 | 240*154 | 237*151 |
| 120”4:3 | 244*183 | 256*195 | 253*192 |
| 120”16:9 | 265*150 | 277*162 | 274*159 |
| 120”16:10 | 258*161 | 270*173 | 267*170 |
| 133”4:3 | 270*202 | 282*214 | 279*211 |
| 133”16:9 | 294*165 | 306*177 | 303*174 |
| 133”16:10 | 286*179 | 298*191 | 295*188 |
| 150”4:3 | 304*228 | 316*240 | 313*237 |
| 150”16:9 | 331*186 | 343*198 | 340*195 |
| 150”16:10 | 322*201 | 334*213 | 331*210 |
| 180”4:3 | 365*274 | 377*286 | 374*283 |
| 180”16:9 | 398*224 | 410*236 | 407*233 |
| 180”16:10 | 387*242 | 399*254 | 396*251 |
| 200”4:3 | 400*300 | 412*312 | 409*309 |
| 200”16:9 | 440*249 | 454*261 | 451*258 |
| 200”16:10 | 430*268 | 442*280 | 439*277 |
